Axel Joost Elektronik, B-Box brain box

2,531,25 kr inkl. moms

Axel Joost Elektronik, B-Box brain box

I lager hos leverantör

Artikelnr: MCS954136 Kategori: Varumärke:

Beskrivning

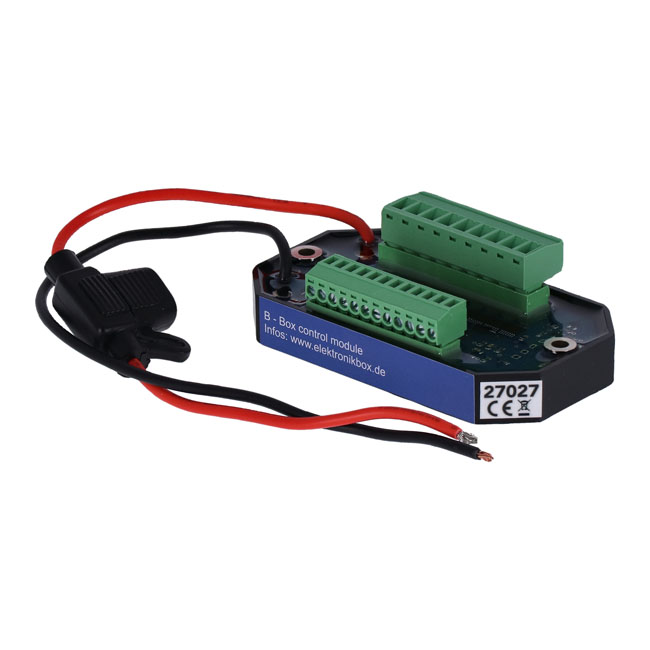

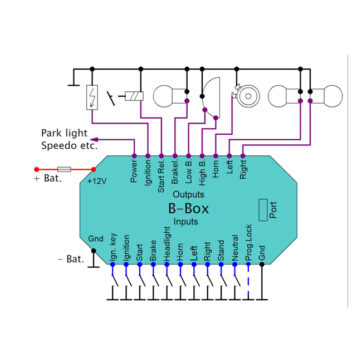

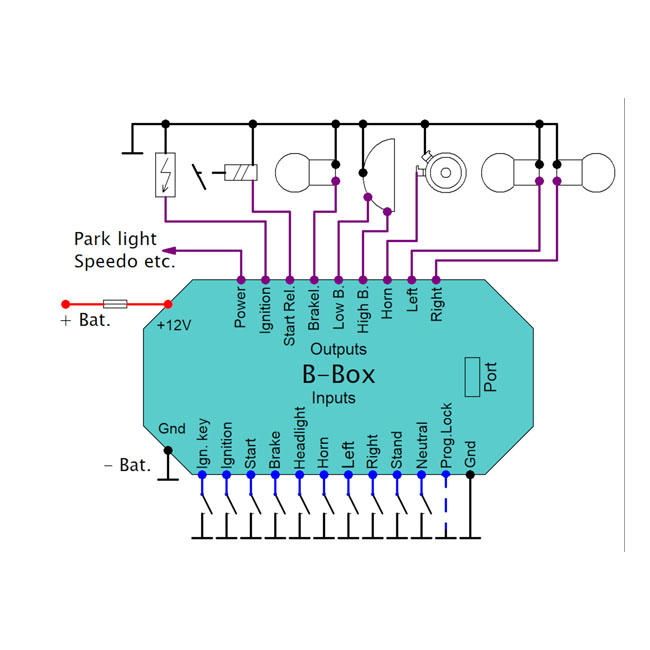

Controlbox (Box-B brain box) with screw connectors. Perfect if sufficient room is available and a quick wiring installation is required. Functions: – Ignition (with or without side stand switch control) via the ignition switch – Switch output, for parking light etc. – Starter (with or without neutral switch control) – Headlamp with button or switch control – Turn signal relay, controlled with buttons or switches – Brake light with selectable flasher function – Horn – Dimensions: 92 mm x 50 mm x 36 mm including connector terminals – Body material: shock resistant ABS plastic, waterproof poured resin – Case Color: Black – Main connections: 2.5 qmm – Power consumption in standby: About 0.2 mA – Maximum ambient temperature: 80 degree Celsius – Maximum output current: 5 Ampere / output – Input voltage range: 7 – 18 Volt – Maximum current / Box: 20 Ampere.

Ytterligare information

Vikt 0,5 kg
