Beskrivning

570G Camshaft Kit

Designed for 88″ to 103″ CID engines with compression ratios between 9:1 and 10:1

Strongest from 3200-3700 rpm

Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain drive

Reverses the rear cam’s direction of rotation, providing additional operating clearance between cam lobes resulting in higher cam lifts

Material must be removed from inner surface of stock gear cover to install

A hydraulic press and other professional level tools required to install kit

S&S recommends that adjustable pushrod/cover kit be used

Cam bearings and gasket must be replaced when installing new cams

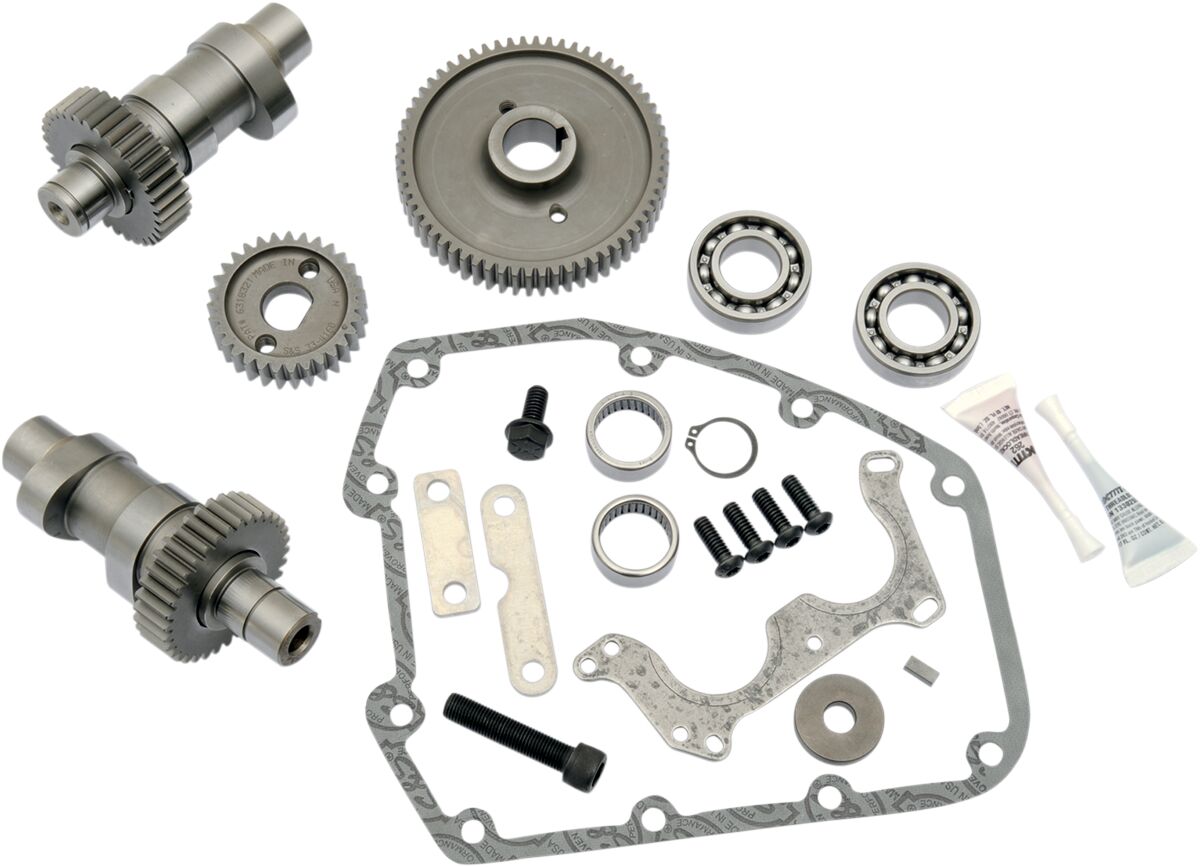

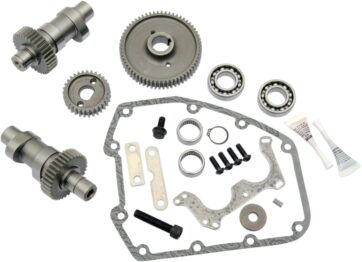

Kit includes camshafts, gearcover gasket, bearings, oil passage block off kit, retaining ring, o-ring, inner and outer gears

Made in the USA

Due to the inherent characteristics of gear drives, you may experience more valve train noise.

Installer must check coil bind, valve to valve clearance and valve to piston clearance.

’99-’04 models require high performance valve springs.
Normal leveranstid från leverantör: 4-7 dagar

Ytterligare information

Vikt	2,774 kg
Tillverkare	S+S CYCLE
Exhaust Open Imperial	55°
Exhaust Close	20°
Exhaust Duration	255°
Exhaust Duration Imperial	255°
Exhaust Lift	0,570"
Exhaust Lift at TDC	0,179"
Exhaust Lift at TDC Imperial	0.179"
Exhaust Lift Imperial	0.570"
Exhaust Lobe Centerline	107,5°
Exhaust Lobe Centerline Imperial	107.5°
Application	Exhaust, Intake
Exhaust Open	55°
Grind	570 Series
Intake Lift Imperial	0.570"
Intake Open Imperial	20°
Intake Open	20°
Intake Lobe Centerline Imperial	100°
Intake Close	40°
Intake Lobe Centerline	100°
Intake Lift at TDC Imperial	0.187"
Intake Lift at TDC	0,187"
Intake Lift	0,570"
Intake Duration Imperial	240°
Intake Duration	240°
