CAMSHAFT KIT HP 103 STANDARD GEAR DRIVE

12,802 kr inkl. moms

CAMS HP103GD 99-06

I lager hos leverantör

Artikelnr: 09251050 Kategori: Etikett:

Beskrivning

HP103 Cam Kit

  • Camshaft gear drive kits increase valve timing accuracy by eliminating timing chain lash and loosely-fit stock chain drive
  • Reverses the rear cam’s direction of rotation, providing additional operating clearance between cam lobes; as a result, higher cam lifts are possible with the gear drive kit

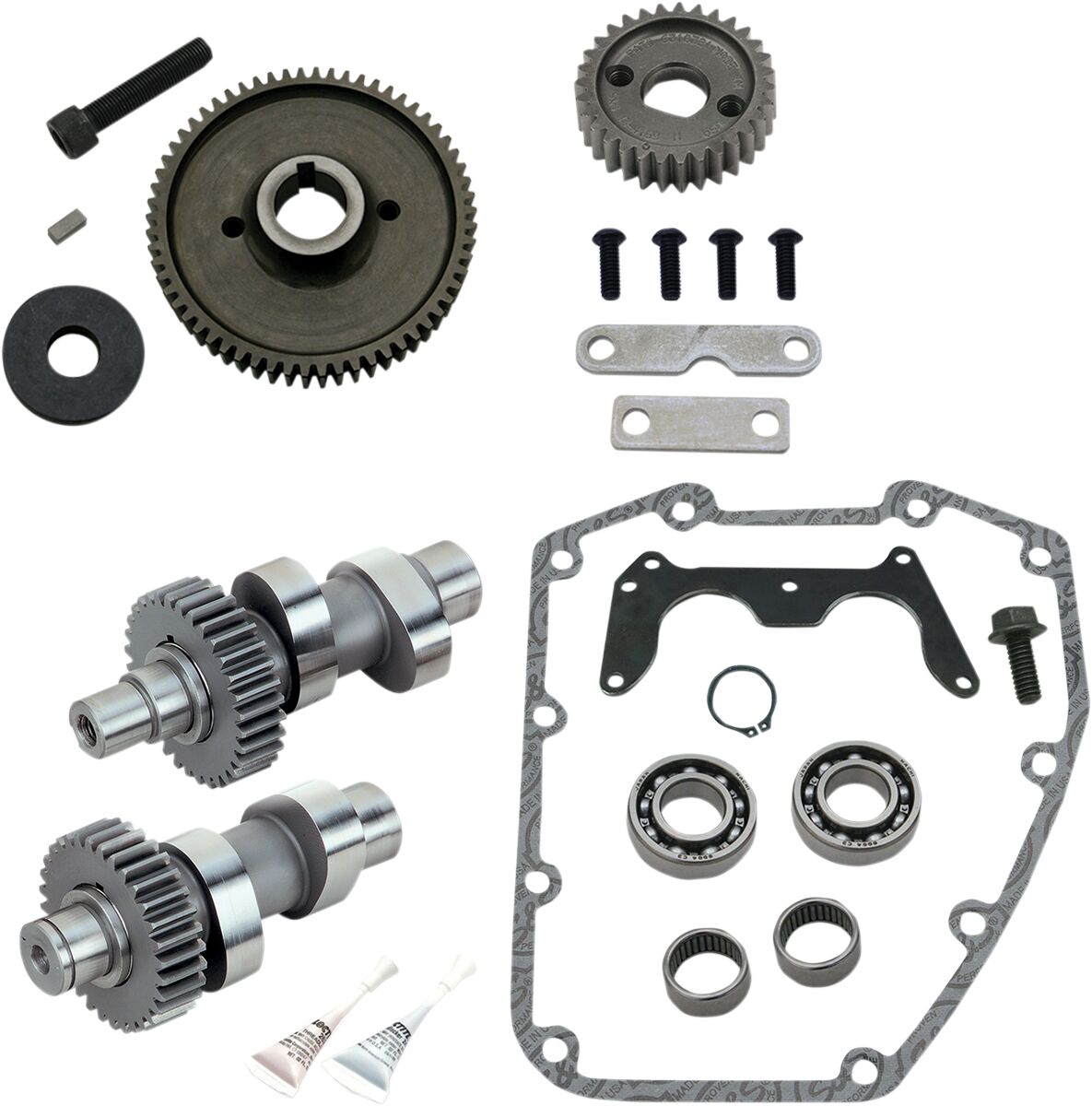

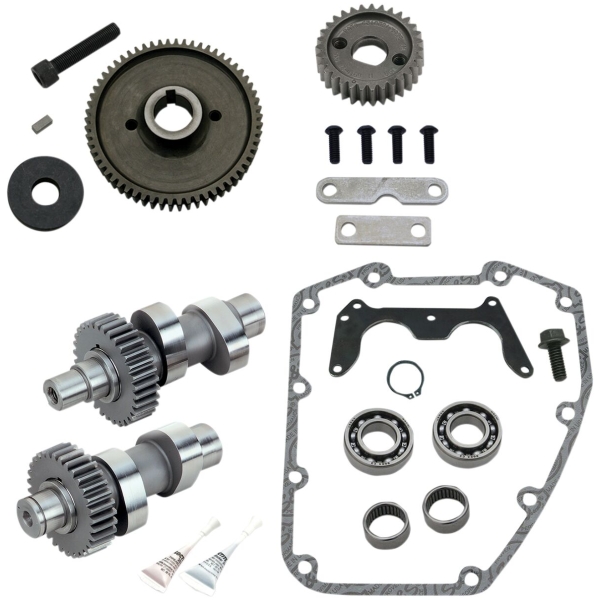

  • Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions
  • Material must be removed from the inner surface of the stock gear cover to install S&S gear drive cams
  • A hydraulic press and other professional-level tools are required to install these kits
  • Cam bearings and gaskets must be replaced when installing new cams
  • Kits require high-performance valve springs when installed in 99-04 models.
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Bolt-in cam for 103” and 106” Big Bore Twin Cam motors
  • Use with stock heads (up to 10.2 compression) and low restriction intake and exhaust
  • Great for lighter bikes with strong power from 3500-6000 rpm
  • Made in the U.S.A.



    • Normal leveranstid från leverantör: 4-7 dagar

    Ytterligare information

    Vikt 2,785 kg
    Tillverkare

    Exhaust Open Imperial

    45°
    Exhaust Close

    26°
    Exhaust Close Imperial

    26°
    Exhaust Duration

    251°
    Exhaust Duration Imperial

    251°
    Exhaust Lift

    0,575"
    Exhaust Lift Imperial

    0.575"
    Application

    Exhaust, Intake
    Exhaust Open

    45°
    Grind

    HP103
    Intake Close

    49°
    Intake Close Imperial

    49°
    Intake Duration

    249°
    Intake Duration Imperial

    249°
    Intake Lift

    0,575"
    Intake Lift Imperial

    0.575"
    Intake Open

    20°
    Intake Open Imperial

    20°
    Harley Davidson
    FLHR 1450 Road King 1999-2006
    FLHRC 1450 Road King Classic 2004
    FLHRCI 1450 EFI Road King Classic 1999-2006
    FLHRI 1450 EFI Road King 1999-2006
    FLHRS 1450 Road King Custom 2004-2006
    FLHRSI 1450 EFI Road King Custom 2004-2006
    FLHT 1450 Electra Glide 1999-2006
    FLHTC 1450 Electra Glide Classic 2002-2005
    FLHTCI 1450 EFI Electra Glide Classic 1999-2006
    FLHTCUI 1450 EFI Electra Glide Ultra Classic 1999-2006
    FLHTI 1450 EFI Electra Glide 2004-2006
    FLHX 1450 Street Glide 2006
    FLHXI 1450 EFI Street Glide 2006
    FLST 1450 Heritage Softail 2006
    FLSTC 1450 Heritage Softail Classic 2000-2006
    FLSTCI 1450 EFI Heritage Softail Classic 2001-2006
    FLSTF 1450 Fat Boy 2000-2006
    FLSTFI 1450 EFI Fat Boy 2001-2006
    FLSTI 1450 EFI Heritage Softail 2006
    FLSTN 1450 Softail Deluxe 2005-2006
    FLSTNI 1450 EFI Softail Deluxe 2005-2006
    FLSTS 1450 Heritage Softail Springer 2000-2003
    FLSTSC 1450 Softail Springer Classic 2005-2006
    FLSTSCI 1450 EFI Softail Springer Classic 2005-2006
    FLSTSI 1450 EFI Heritage Softail Springer 2003
    FLTR 1450 Road Glide 1999-2003
    FLTRI 1450 EFI Road Glide 1999-2006
    FXD 1450 Dyna Super Glide 1999-2005
    FXDC 1450 Dyna Super Glide Custom 2005
    FXDCI 1450 EFI Dyna Super Glide Custom 2005
    FXDI 1450 EFI Dyna Super Glide 2004-2005
    FXDL 1450 Dyna Low Rider 1999-2005
    FXDLI 1450 EFI Dyna Low Rider 2004-2005
    FXDWG 1450 Dyna Wide Glide 1999-2005
    FXDWG2 1450 Dyna Wide Glide Limited Edition 2001
    FXDWG3 1450 Dyna Wide Glide Limited Edition 2002
    FXDWGI 1450 EFI Dyna Wide Glide 2004-2005
    FXDX 1450 Dyna Super Glide Sport 1999-2004
    FXDXI 1450 EFI Dyna Super Glide Sport 2004-2005
    FXDXT 1450 Dyna Super Glide T-Sport 2001-2003
    FXST 1450 Softail 2000-2006
    FXSTB 1450 Softail Night Train 2000-2006
    FXSTBI 1450 EFI Softail Night Train 2003-2006
    FXSTD 1450 Softail Deuce 2000-2006
    FXSTDI 1450 EFI Softail Deuce 2001-2006
    FXSTI 1450 EFI Softail 2003-2006
    FXSTS 1450 Softail Springer 2000-2006
    FXSTSI 1450 EFI Softail Springer 2003-2006
