CAMSHAFT KIT MR 103 STANDARD CHAIN DRIVE

5,744 kr inkl. moms

CAMS MR103C 07-17TC

Slut i lager

Artikelnr: 09251143 Kategori: Etikett:

Beskrivning

MR103 Cam Kit

  • Camshaft gear drive kits increase valve timing accuracy by eliminating timing chain lash and loosely-fit stock chain drive
  • Reverses the rear cam’s direction of rotation, providing additional operating clearance between cam lobes; as a result, higher cam lifts are possible with the gear drive kit

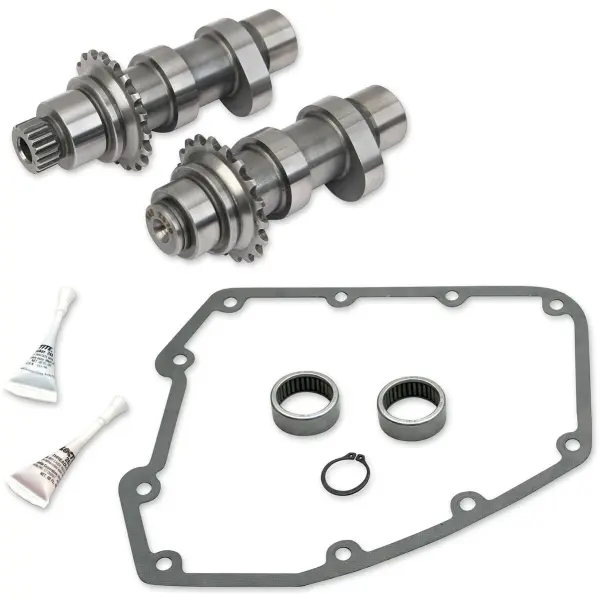

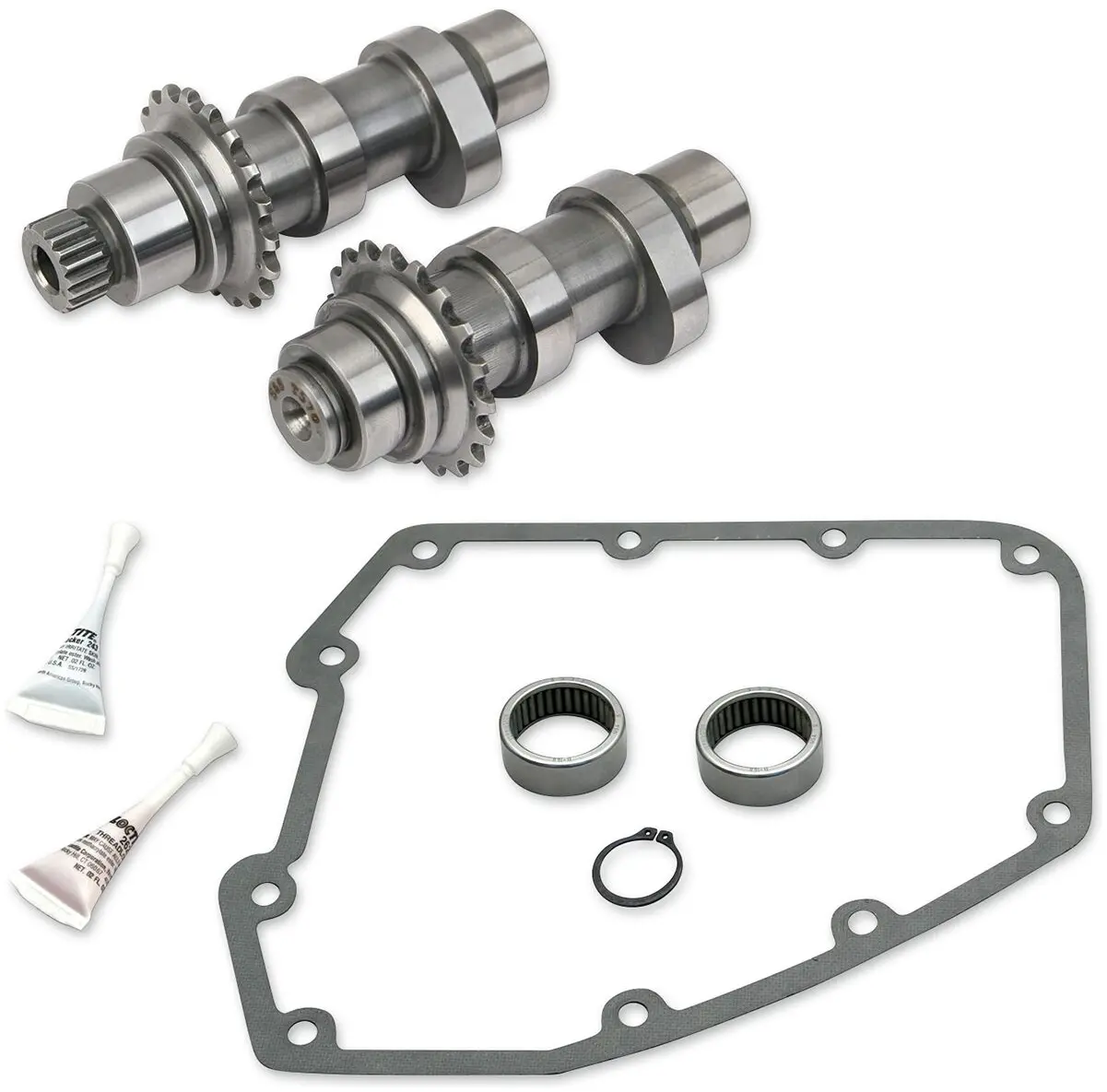

  • Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions
  • Material must be removed from the inner surface of the stock gear cover to install S&S gear drive cams
  • A hydraulic press and other professional-level tools are required to install these kits
  • Cam bearings and gaskets must be replaced when installing new cams
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • Use with stock heads and low restriction intake and exhaust
  • Broad torque curve improves output over stock over the entire rpm range
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Made in the U.S.A.



    • Normal leveranstid från leverantör: 4-7 dagar

    Ytterligare information

    Vikt 1,836 kg
    Tillverkare

    Features

    Includes Installation Kit
    Exhaust Close

    22°
    Exhaust Close Imperial

    22°
    Exhaust Duration

    252°
    Exhaust Duration Imperial

    252°
    Exhaust Lift

    0,585"
    Exhaust Lift Imperial

    0.585"
    Exhaust Open

    50°
    Application

    Exhaust, Intake
    Exhaust Open Imperial

    50°
    Grind

    MR103
    Intake Close

    33°
    Intake Close Imperial

    33°
    Intake Duration

    226°
    Intake Duration Imperial

    226°
    Intake Lift

    0,585"
    Intake Lift Imperial

    0.585"
    Intake Open

    13°
    Intake Open Imperial

    13°
    Model

    MR103
    Harley Davidson
    FLD 1690 Dyna Switchback 2012-2013
    FLD 1690 ABS Dyna Switchback 2012-2016
    FLHR 1584 Road King 2007-2011
    FLHR 1584 ABS Road King 2008-2011
    FLHR 1690 Road King 2012-2015
    FLHR 1690 ABS Road King 2012-2016
    FLHR 1690 ABS Road King 110th Anniversary 2013
    FLHRC 1584 Road King Classic 2007-2010
    FLHRC 1584 ABS Road King Classic 2008-2011
    FLHRC 1690 ABS Road King Classic 2011-2016
    FLHRS 1584 Road King Custom 2007
    FLHT 1584 Electra Glide 2007-2010
    FLHT 1584 ABS Electra Glide 2008-2010
    FLHTC 1584 Electra Glide Classic 2007-2011
    FLHTC 1584 ABS Electra Glide Classic 2009-2011
    FLHTC 1690 Electra Glide Classic 2012-2013
    FLHTC 1690 ABS Electra Glide Classic 2011-2013
    FLHTCU 1584 Electra Glide Ultra Classic 2007-2011
    FLHTCU 1584 ABS Electra Glide Ultra Classic 2008-2011
    FLHTCU 1690 Electra Glide Ultra Classic 2012-2013
    FLHTCU 1690 ABS Electra Glide Ultra Classic 2012-2016
    FLHTCUL 1690 ABS Electra Glide Ultra Classic Low 2015-2016
    FLHTCUTG 1690 Trike Tri Glide Ultra Classic 2009-2012
    FLHTK 1584 ABS Electra Glide Ultra Limited 2010-2011
    FLHTK 1690 ABS Electra Glide Ultra Limited 2011-2016
    FLHTK 1690 ABS Electra Glide Ultra Limited 110th Anniversary 2013
    FLHTKL 1690 ABS Electra Glide Ultra Limited Low 2015-2016
    FLHX 1584 Street Glide 2007-2011
    FLHX 1584 ABS Street Glide 2008-2011
    FLHX 1690 Street Glide 2011-2016
    FLHX 1690 ABS Street Glide 2011-2016
    FLHXS 1690 ABS Street Glide Special 2014-2016
    FLHXXX 1690 Trike Street Glide 2010-2011
    FLS 1690 Softail Slim 2012-2017
    FLS 1690 ABS Softail Slim 2012-2017
    FLSTC 1584 Heritage Softail Classic 2007-2011
    FLSTC 1584 ABS Heritage Softail Classic 2011
    FLSTC 1690 Heritage Softail Classic 2012-2013
    FLSTC 1690 ABS Heritage Softail Classic 2012-2017
    FLSTC 1690 ABS Heritage Softail Classic 110th Anniversary 2013
    FLSTF 1584 Fat Boy 2007-2011
    FLSTF 1584 ABS Fat Boy 2011
    FLSTF 1690 Fat Boy 2012-2014
    FLSTF 1690 ABS Fat Boy 2012-2017
    FLSTFB 1584 Fat Boy Lo 2010-2011
    FLSTFB 1584 Fat Boy Special 2010
    FLSTFB 1584 ABS Fat Boy Lo 2011
    FLSTFB 1584 ABS Fat Boy Special 2011
    FLSTFB 1690 Fat Boy Lo 2012-2013
    FLSTFB 1690 ABS Fat Boy Lo 2012-2017
    FLSTFB 1690 ABS Fat Boy Lo 110th Anniversary 2013
    FLSTFB 1690 ABS Fat Boy Special 2012-2017
    FLSTFB 1690 ABS Fat Boy Special 110th Anniversary 2013
    FLSTN 1584 Softail Deluxe 2007-2011
    FLSTN 1584 ABS Softail Deluxe 2011
    FLSTN 1690 Softail Deluxe 2012-2013
    FLSTN 1690 ABS Softail Deluxe 2012-2017
    FLSTSB 1584 Cross Bones 2008-2011
    FLSTSC 1584 Softail Springer Classic 2007
    FLTR 1584 Road Glide 2007-2010
    FLTR 1584 ABS Road Glide 2009-2010
    FLTRU 1584 ABS Road Glide Ultra 2011
    FLTRU 1690 ABS Road Glide Ultra 2011-2016
    FLTRX 1584 Road Glide Custom 2010-2011
    FLTRX 1584 ABS Road Glide Custom 2010-2011
    FLTRX 1690 Road Glide 2015-2016
    FLTRX 1690 Road Glide Custom 2011-2013
    FLTRX 1690 ABS Road Glide 2015-2016
    FLTRX 1690 ABS Road Glide Custom 2011-2013
    FLTRXS 1690 ABS Road Glide Special 2015-2016
    FXCW 1584 Rocker 2008-2009
    FXCWC 1584 Rocker C 2008-2011
    FXCWC 1584 ABS Rocker C 2011
    FXD 1584 Dyna Super Glide 2007-2010
    FXDB 1584 Dyna Street Bob 2007-2013
    FXDB 1584 ABS Dyna Street Bob 2012-2013
    FXDB 1690 Dyna Street Bob 2014-2017
    FXDB 1690 ABS Dyna Street Bob 2014-2017
    FXDBA 1584 Dyna Street Bob Limited 2013
    FXDBA 1584 ABS Dyna Street Bob Limited 2013
    FXDBA 1690 Dyna Street Bob Limited 2013
    FXDBA 1690 ABS Dyna Street Bob Limited 2013
    FXDBB 1690 Dyna Street Bob Special 2014-2015
    FXDBB 1690 ABS Dyna Street Bob Special 2014-2015
    FXDBC 1690 Dyna Street Bob Limited 2016
    FXDBC 1690 ABS Dyna Street Bob Limited 2016
    FXDBI 1450 EFI Dyna Street Bob 2006
    FXDBP 1690 Dyna Street Bob Factory Custom 2013-2016
    FXDBP 1690 ABS Dyna Street Bob Factory Custom 2013-2016
    FXDC 1584 Dyna Super Glide Custom 2007-2013
    FXDC 1584 ABS Dyna Super Glide Custom 2012-2013
    FXDC 1584 ABS Dyna Super Glide Custom 110th Anniversary 2013
    FXDC 1690 Dyna Super Glide Custom 2014
    FXDC 1690 ABS Dyna Super Glide Custom 2014
    FXDCI 1450 EFI Dyna Super Glide Custom 2006
    FXDF 1584 Dyna Fat Bob 2008-2011
    FXDF 1584 ABS Dyna Fat Bob 2012
    FXDF 1690 Dyna Fat Bob 2012-2017
    FXDF 1690 ABS Dyna Fat Bob 2012-2017
    FXDI 1450 EFI Dyna Super Glide 2006
    FXDI35 1450 EFI Dyna Super Glide 35th Anniversary 2006
    FXDL 1584 Dyna Low Rider 2007-2009
    FXDL 1690 Dyna Low Rider 2014-2017
    FXDL 1690 ABS Dyna Low Rider 2014-2017
    FXDLI 1450 EFI Dyna Low Rider 2006
    FXDWG 1584 Dyna Wide Glide 2007-2011
    FXDWG 1584 Dyna Wide Glide 105th Anniversary 2008
    FXDWG 1584 ABS Dyna Wide Glide 2012
    FXDWG 1690 Dyna Wide Glide 2012-2013
    FXDWG 1690 ABS Dyna Wide Glide 2012-2017
    FXDWGI 1450 EFI Dyna Wide Glide 2006
    FXS 1584 Blackline 2011
    FXS 1584 ABS Blackline 2011-2012
    FXS 1690 Blackline 2012-2013
    FXS 1690 ABS Blackline 2012-2013
    FXSB 1690 Breakout 2013
    FXSB 1690 ABS Breakout 2013-2017
    FXST 1584 Softail 2007
    FXSTB 1584 Softail Night Train 2007-2009
    FXSTC 1584 Softail Custom 2007-2010
    FXSTD 1584 Softail Deuce 2007
