CAMSHAFT SET 509C CHAIN-DRIVEN

580 kr inkl. moms

CAM 509 CHN 99-06

Kan restnoteras

Artikelnr: 09250539 Kategori: Etikett:

Beskrivning

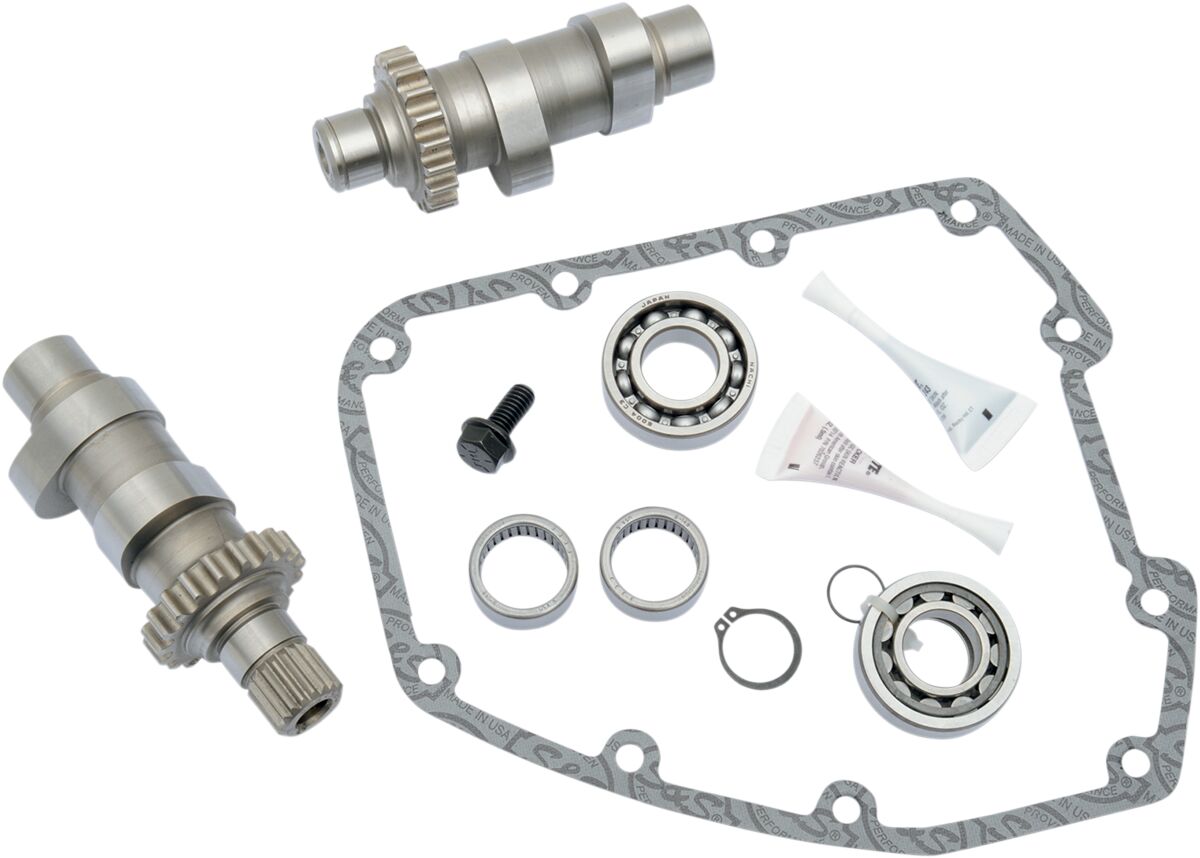

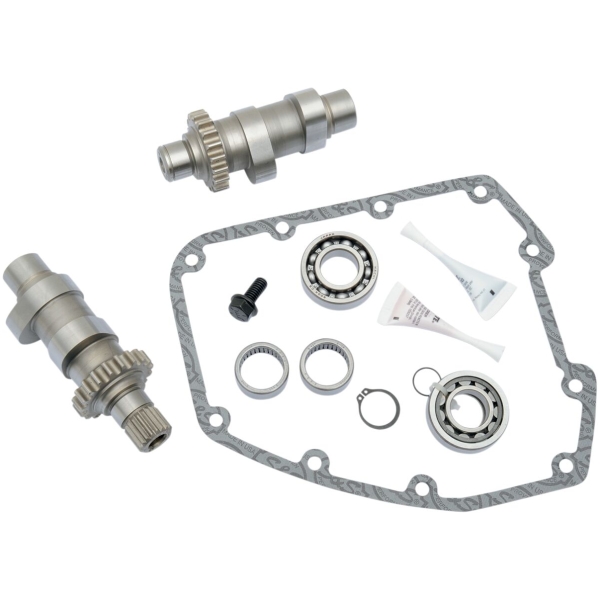

509C Chain Drive Camshaft Kit

  • Great low and mid-range torque
  • Strongest from 1000-4500 RPM
  • Bolt-in cams for 88 CID engines with stock compression ratios
  • 180 psi cranking compression; no need for compression releases
  • Lower lift allows them to be bolted into stock 96″-106″ ’06 engines with stock valve springs
  • Cams for ’00-’06 Twin Cam are for use with stock splined drive gears; for installation on ’99 Twin Cam motors you must purchase splined outer drive socket; S&S recommends that Andrews 4340 steel drive sprocket to be used.
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.
  • EU: 12,41 Bar cranking compression; no need for compression releases



    • Not for ’06 Dyna.
    Normal leveranstid från leverantör: 4-7 dagar

    Ytterligare information

    Vikt 1,83 kg
    Tillverkare

    Exhaust Open Imperial

    46°
    Exhaust Open

    46°
    Exhaust Lobe Centerline Imperial

    107.5°
    Exhaust Lobe Centerline

    107,5°
    Exhaust Lift Imperial

    0.509"
    Exhaust Lift at TDC Imperial

    0.140"
    Exhaust Lift at TDC

    0,140"
    Exhaust Lift

    0,509"
    Exhaust Duration Imperial

    237°
    Exhaust Duration

    237°
    Exhaust Close Imperial

    11°
    Application

    Exhaust, Intake
    Exhaust Close

    11°
    Grind

    509 Series
    Intake Lift Imperial

    0.509"
    Intake Open Imperial

    18°
    Intake Open

    18°
    Intake Lobe Centerline Imperial

    90°
    Intake Close

    18°
    Intake Lobe Centerline

    90°
    Intake Lift at TDC Imperial

    0.174"
    Intake Lift at TDC

    0,174"
    Intake Lift

    0,509"
    Intake Duration Imperial

    216°
    Intake Duration

    216°
    Intake Close Imperial

    18°
