CAMSHAFT SET 509G GEAR-DRIVEN

13,026 kr inkl. moms

CAM 509 GD 99-06

I lager hos leverantör

Artikelnr: 09250540 Kategori: Etikett:

Beskrivning

509 Cam Kit

  • Great low and mid-range torque
  • Lower lift allows them to be bolted into stock 96″-106″ 2006 engines with stock valve springs
  • Strongest from 1,000-4,500 rpm
  • 180 psi cranking compression; no need for compression releases

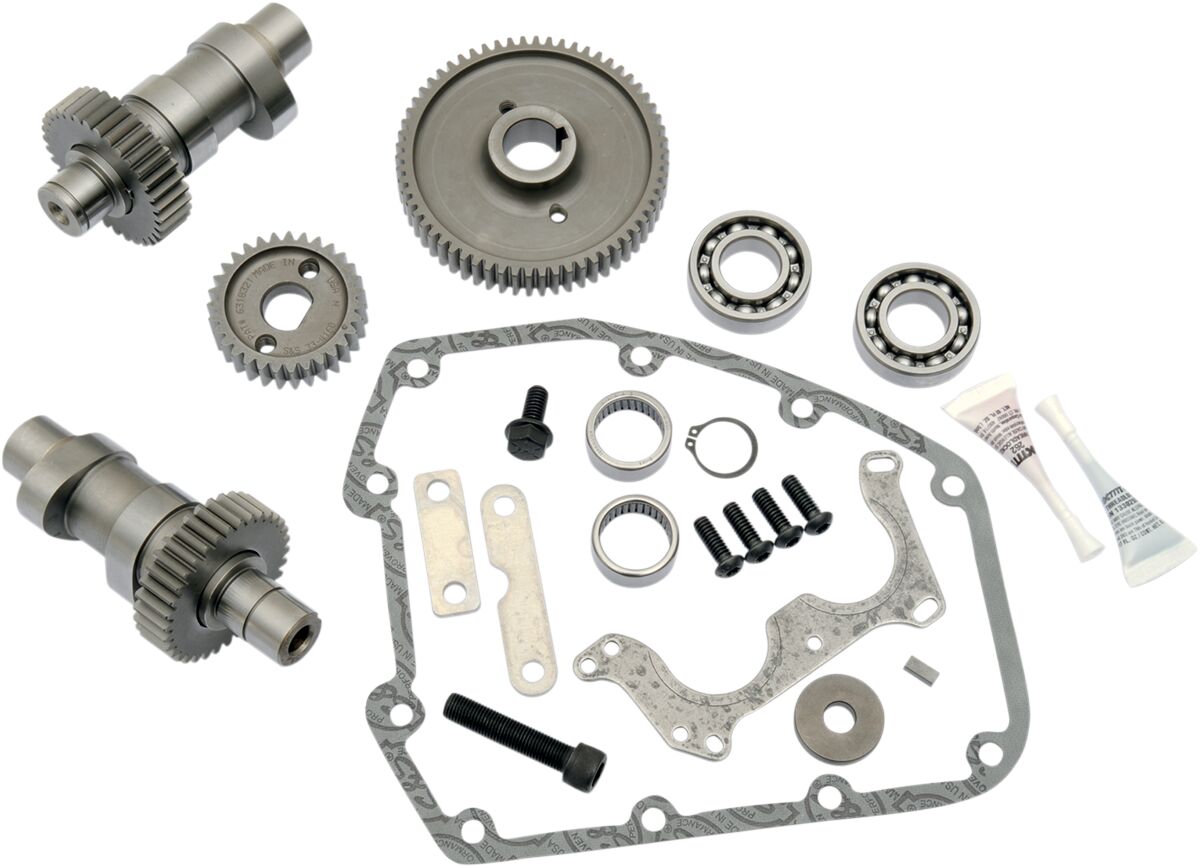

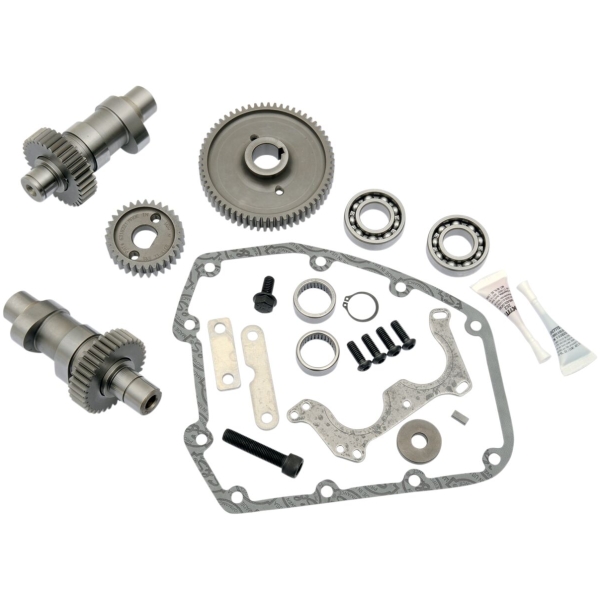

  • Included Items: (2) Chain drive cams (1) front, (1) rear, (2) 22 x28.5 x12 Needle bearings, (1) Large O-ring, (2) Small O-rings, (1) Retaining ring, (1) 20 x 42x 12 Bearing, (1) 20 x 42 x12 Bearing w/O-ring, (1) 5/16″-18 x 3/4″ Flange hex head bolt, (1) Cam cover gasket, (1) 5ml Tube of loctite® 262, (1) 5ml Tube of loctite® 243, Instructions
  • Made in the U.S.A.
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.Due to the inherent characteristics of gear drives, you may experience more valve train noise
  • If OES, 509 or 510C cams are used with the stock chain drive system in Twin Cam 88 engines, it is recommended to use cylinder heads with stock valve springs or performance valve springs with no more than 160 lb. of seat force. For more demanding applications, we recommend the S&S gear drive cams.



    • Normal leveranstid från leverantör: 4-7 dagar

    Ytterligare information

    Vikt 2,826 kg
    Tillverkare

    Exhaust Open Imperial

    46°
    Exhaust Open

    46°
    Exhaust Lobe Centerline Imperial

    107.5°
    Exhaust Lobe Centerline

    107,5°
    Exhaust Lift Imperial

    0.509"
    Exhaust Lift at TDC Imperial

    0.140"
    Exhaust Lift at TDC

    0,140"
    Exhaust Lift

    0,509"
    Exhaust Duration Imperial

    237°
    Exhaust Duration

    237°
    Exhaust Close Imperial

    11°
    Application

    Exhaust, Intake
    Exhaust Close

    11°
    Grind

    509 Series
    Intake Lift Imperial

    0.509"
    Intake Open Imperial

    18°
    Intake Open

    18°
    Intake Lobe Centerline Imperial

    90°
    Intake Close

    18°
    Intake Lobe Centerline

    90°
    Intake Lift at TDC Imperial

    0.174"
    Intake Lift at TDC

    0,174"
    Intake Lift

    0,509"
    Intake Duration Imperial

    216°
    Intake Duration

    216°
    Intake Close Imperial

    18°
    Harley Davidson
    FLHR 1450 Road King 1999-2006
    FLHRC 1450 Road King Classic 2004
    FLHRCI 1450 EFI Road King Classic 1999-2006
    FLHRI 1450 EFI Road King 1999-2006
    FLHRS 1450 Road King Custom 2004-2006
    FLHRSEI 1550 Road King Screamin Eagle 2002
    FLHRSEI2 1690 Road King Screamin Eagle 2003
    FLHRSI 1450 EFI Road King Custom 2004-2006
    FLHT 1450 Electra Glide 1999-2006
    FLHTC 1450 Electra Glide Classic 2002-2005
    FLHTCI 1450 EFI Electra Glide Classic 1999-2006
    FLHTCSE2 1690 EFI Electra Glide Screamin Eagle 2005
    FLHTCUI 1450 EFI Electra Glide Ultra Classic 1999-2006
    FLHTCUSE 1690 Electra Glide Ultra Classic Screamin Eagle 2006
    FLHTI 1450 EFI Electra Glide 2004-2006
    FLHX 1450 Street Glide 2006
    FLHXI 1450 EFI Street Glide 2006
    FLST 1450 Heritage Softail 2006
    FLSTC 1450 Heritage Softail Classic 2000-2006
    FLSTCI 1450 EFI Heritage Softail Classic 2001-2006
    FLSTF 1450 Fat Boy 2000-2006
    FLSTFI 1450 EFI Fat Boy 2001-2006
    FLSTFI 1550 EFI Fat Boy 15th Anniversary 2005
    FLSTFSE 1690 Fat Boy Screamin Eagle 2005
    FLSTFSE2 1690 Fat Boy Screamin Eagle 2006
    FLSTI 1450 EFI Heritage Softail 2006
    FLSTN 1450 Softail Deluxe 2005-2006
    FLSTNI 1450 EFI Softail Deluxe 2005-2006
    FLSTS 1450 Heritage Softail Springer 2000-2003
    FLSTSC 1450 Softail Springer Classic 2005-2006
    FLSTSCI 1450 EFI Softail Springer Classic 2005-2006
    FLSTSI 1450 EFI Heritage Softail Springer 2003
    FLTR 1450 Road Glide 1999-2002
    FLTRI 1450 EFI Road Glide 1999-2006
    FLTRSEI 1550 Road Glide Screamin Eagle 2000
    FLTRSEI2 1550 Road Glide Screamin Eagle 2001
    FXD 1450 Dyna Super Glide 1999-2005
    FXDC 1450 Dyna Super Glide Custom 2005
    FXDCI 1450 EFI Dyna Super Glide Custom 2005
    FXDI 1450 EFI Dyna Super Glide 2004-2005
    FXDL 1450 Dyna Low Rider 1999-2005
    FXDLI 1450 EFI Dyna Low Rider 2004-2005
    FXDWG 1450 Dyna Wide Glide 1999-2005
    FXDWG2 1450 Dyna Wide Glide Limited Edition 2001
    FXDWG3 1450 Dyna Wide Glide Limited Edition 2002
    FXDWGI 1450 EFI Dyna Wide Glide 2004-2005
    FXDX 1450 Dyna Super Glide Sport 1999-2004
    FXDXI 1450 EFI Dyna Super Glide Sport 2004-2005
    FXDXT 1450 Dyna Super Glide T-Sport 2001-2003
    FXST 1450 Softail 2000-2006
    FXSTB 1450 Softail Night Train 2000-2006
    FXSTBI 1450 EFI Softail Night Train 2003-2006
    FXSTD 1450 Softail Deuce 2000-2006
    FXSTDI 1450 EFI Softail Deuce 2001-2006
    FXSTDSE 1550 Softail Deuce Screamin Eagle 2003
    FXSTDSE2 1550 Softail Deuce Screamin Eagle 2004
    FXSTI 1450 EFI Softail 2003-2006
    FXSTS 1450 Softail Springer 2000-2005
    FXSTSI 1450 EFI Softail Springer 2003-2005
