CAMSHAFT SET 510G GEAR-DRIVEN

6,698 kr inkl. moms

CAMS W/IN GRS 99-06 510G

I lager hos leverantör

Artikelnr: 09250620 Kategori: Etikett:

Beskrivning

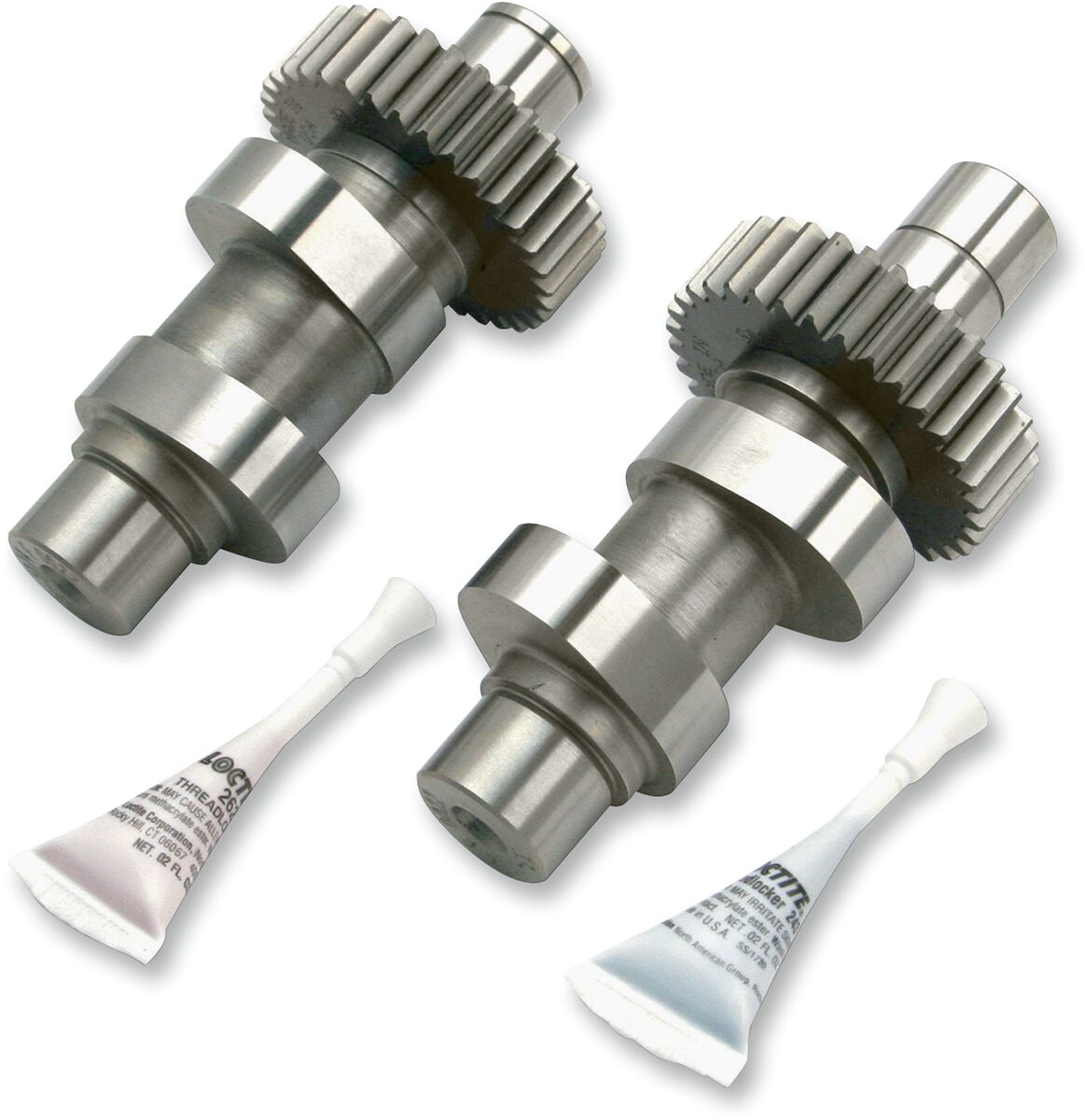

510 Cam Kit

  • Camshaft gear drive kits increase valve timing accuracy in Twin Cam engines by eliminating timing chain lash and loosely fit stock chain drive
  • Reverses the rear cam’s direction of rotation, providing additional operating clearance between cam lobes; as a result, higher cam lifts are possible with the gear drive kit
  • Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions
  • Material must be removed from the inner surface of the stock gear cover to install S&S gear drive cams
  • A hydraulic press and other professional-level tools are required to install these kits
  • Cam bearings and gaskets must be replaced when installing new cams
  • Strongest from 3000-5000RPM
  • Made in the U.S.A.
  • Includes 1 Pinion Gear, 1 Outer Cam Gear, 1 Side Plate, (1) 5/16 in.-18 x 3/4 in. Flange Bolt, (4) 1/4 in.-20 x 3/4 in. Button Head Bolts, (1) 3/8 in. Flat Washer, 1 Thrust Washer, 1 Retaining Ring, 1 Key, 1 Cam Cover Gasket, 1 Rear Camshaft, 1 Front Camshaft, 2 Needle Bearings, (1) 3/8 in.-24 x 1-3/4 in. Socket Head Bolt



    • Normal leveranstid från leverantör: 4-7 dagar

    Ytterligare information

    Vikt 1,735 kg
    Tillverkare

    Exhaust Open

    52°
    Exhaust Close

    20°
    Exhaust Duration

    252°
    Exhaust Lift

    0,510"
    Exhaust Lift at TDC

    0,187"
    Exhaust Lift at TDC Imperial

    0.187"
    Exhaust Lift Imperial

    0.510"
    Application

    Exhaust, Intake
    Exhaust Lobe Centerline

    106°
    Grind

    510 Series
    Intake Close

    38°
    Intake Duration

    238°
    Intake Lift

    0,510"
    Intake Lift at TDC

    0,187"
    Intake Lift at TDC Imperial

    0.187"
    Intake Lift Imperial

    0.510"
    Intake Lobe Centerline

    99°
    Intake Open

    20°
    Harley Davidson
    FLHR 1450 Road King 1999-2006
    FLHRC 1450 Road King Classic 2004
    FLHRCI 1450 EFI Road King Classic 1999-2006
    FLHRI 1450 EFI Road King 1999-2006
    FLHRS 1450 Road King Custom 2004-2006
    FLHRSEI 1550 Road King Screamin Eagle 2002
    FLHRSEI2 1690 Road King Screamin Eagle 2003
    FLHRSI 1450 EFI Road King Custom 2004-2006
    FLHT 1450 Electra Glide 1999-2006
    FLHTC 1450 Electra Glide Classic 2002-2005
    FLHTCI 1450 EFI Electra Glide Classic 1999-2006
    FLHTCSE2 1690 EFI Electra Glide Screamin Eagle 2005
    FLHTCUI 1450 EFI Electra Glide Ultra Classic 1999-2006
    FLHTCUSE 1690 Electra Glide Ultra Classic Screamin Eagle 2006
    FLHTI 1450 EFI Electra Glide 2004-2006
    FLHX 1450 Street Glide 2006
    FLHXI 1450 EFI Street Glide 2006
    FLST 1450 Heritage Softail 2006
    FLSTC 1450 Heritage Softail Classic 2000-2006
    FLSTCI 1450 EFI Heritage Softail Classic 2001-2006
    FLSTF 1450 Fat Boy 2000-2006
    FLSTFI 1450 EFI Fat Boy 2001-2006
    FLSTFI 1550 EFI Fat Boy 15th Anniversary 2005
    FLSTFSE 1690 Fat Boy Screamin Eagle 2005
    FLSTFSE2 1690 Fat Boy Screamin Eagle 2006
    FLSTI 1450 EFI Heritage Softail 2006
    FLSTN 1450 Softail Deluxe 2005-2006
    FLSTNI 1450 EFI Softail Deluxe 2005-2006
    FLSTS 1450 Heritage Softail Springer 2000-2003
    FLSTSC 1450 Softail Springer Classic 2005-2006
    FLSTSCI 1450 EFI Softail Springer Classic 2005-2006
    FLSTSI 1450 EFI Heritage Softail Springer 2003
    FLTR 1450 Road Glide 1999-2002
    FLTRI 1450 EFI Road Glide 1999-2006
    FLTRSEI 1550 Road Glide Screamin Eagle 2000
    FLTRSEI2 1550 Road Glide Screamin Eagle 2001
    FXD 1450 Dyna Super Glide 1999-2005
    FXDC 1450 Dyna Super Glide Custom 2005
    FXDCI 1450 EFI Dyna Super Glide Custom 2005
    FXDI 1450 EFI Dyna Super Glide 2004-2005
    FXDL 1450 Dyna Low Rider 1999-2005
    FXDLI 1450 EFI Dyna Low Rider 2004-2005
    FXDWG 1450 Dyna Wide Glide 1999-2005
    FXDWG2 1450 Dyna Wide Glide Limited Edition 2001
    FXDWG3 1450 Dyna Wide Glide Limited Edition 2002
    FXDWGI 1450 EFI Dyna Wide Glide 2004-2005
    FXDX 1450 Dyna Super Glide Sport 1999-2004
    FXDXI 1450 EFI Dyna Super Glide Sport 2004-2005
    FXDXT 1450 Dyna Super Glide T-Sport 2001-2003
    FXST 1450 Softail 2000-2006
    FXSTB 1450 Softail Night Train 2000-2006
    FXSTBI 1450 EFI Softail Night Train 2003-2006
    FXSTD 1450 Softail Deuce 2000-2006
    FXSTDI 1450 EFI Softail Deuce 2001-2006
    FXSTDSE 1550 Softail Deuce Screamin Eagle 2003
    FXSTDSE2 1550 Softail Deuce Screamin Eagle 2004
    FXSTI 1450 EFI Softail 2003-2006
    FXSTS 1450 Softail Springer 2000-2005
    FXSTSI 1450 EFI Softail Springer 2003-2005
