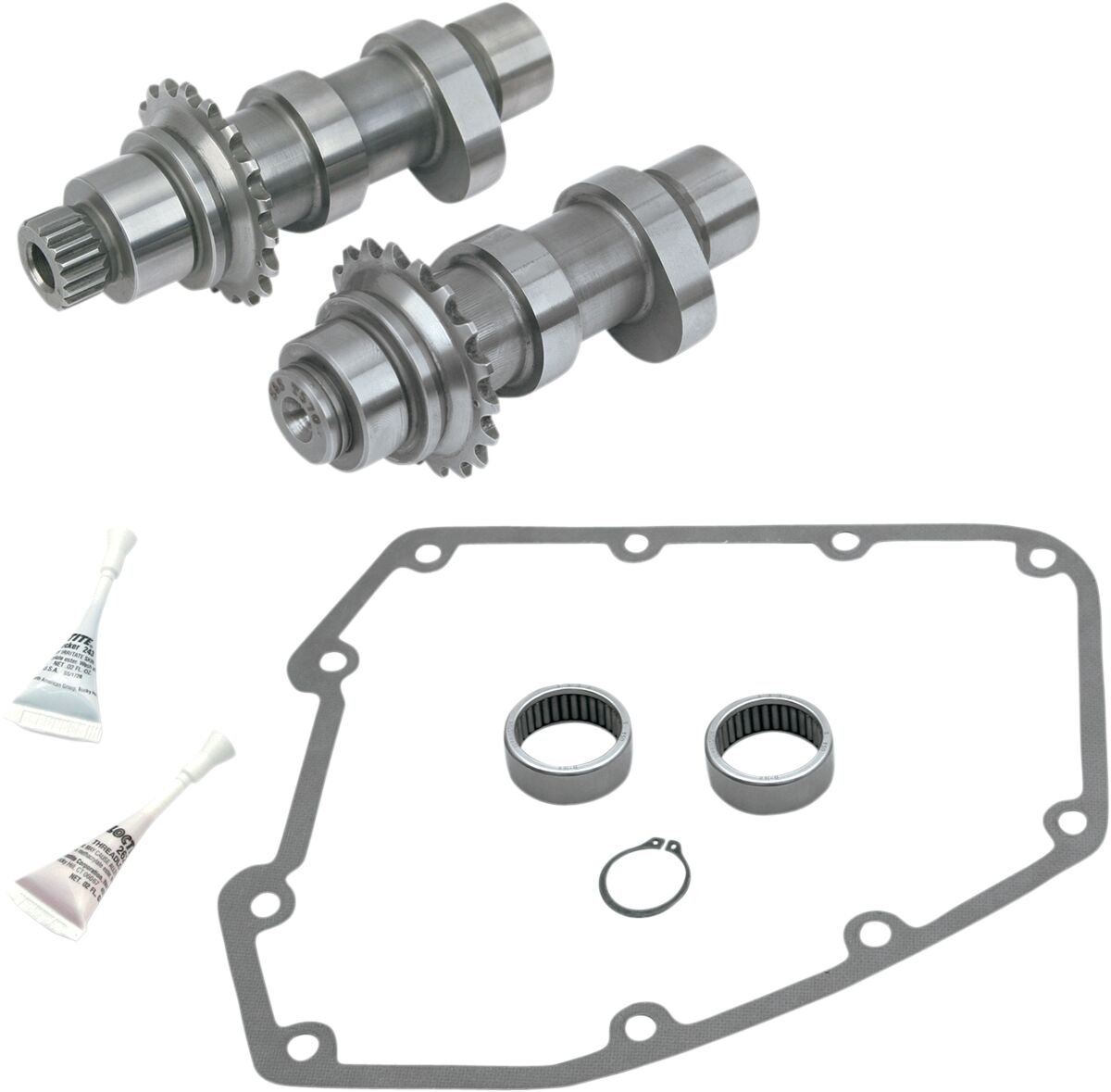

551C Chain Drive Camshaft Kit

Designed for engines with 96 to 106 CID and 9:1 to 9:9 compression, this is a bolt-in cam set for stock or mildly modified touring bikes

More power across the rpm range, with improved low and midrange torque, strongest from 1,000-4,000 rpm

Cams for ’06 Dyna and ’07-’17 Twin Cam are for use with models with hydraulic tensioner chain drive system

Made in the USA

Not recommended for compression ratios of 10:1 or greater.

Installer must check coil bind, valve to valve clearance and valve to piston clearance.

Can be used with stock pushrods, springs, and lifters.
Normal leveranstid från leverantör: 4-7 dagar

Ytterligare information

Vikt	1,851 kg
Tillverkare	S+S CYCLE
Exhaust Open Imperial	41°
Exhaust Open	41°
Exhaust Lobe Centerline Imperial	102°
Exhaust Lobe Centerline	102°
Exhaust Lift Imperial	0.550"
Exhaust Lift at TDC Imperial	0.170"
Exhaust Lift at TDC	0,170"
Exhaust Lift	0,550"
Exhaust Duration Imperial	238°
Exhaust Duration	238°
Exhaust Close Imperial	17°
Application	Exhaust, Intake
Exhaust Close	17°
Grind	551 Series
Intake Lift Imperial	0.550"
Intake Open Imperial	17°
Intake Open	17°
Intake Lobe Centerline Imperial	91°
Intake Close	19°
Intake Lobe Centerline	91°
Intake Lift at TDC Imperial	0.178"
Intake Lift at TDC	0,178"
Intake Lift	0,550"
Intake Duration Imperial	216°
Intake Duration	216°
Intake Close Imperial	19°
