CAMSHAFT SET 585C CHAIN-DRIVEN

5,650 kr inkl. moms

CAMS CHN DR 585C 07-17TC

I lager hos leverantör

Artikelnr: 09250349 Kategori: Etikett:

Beskrivning

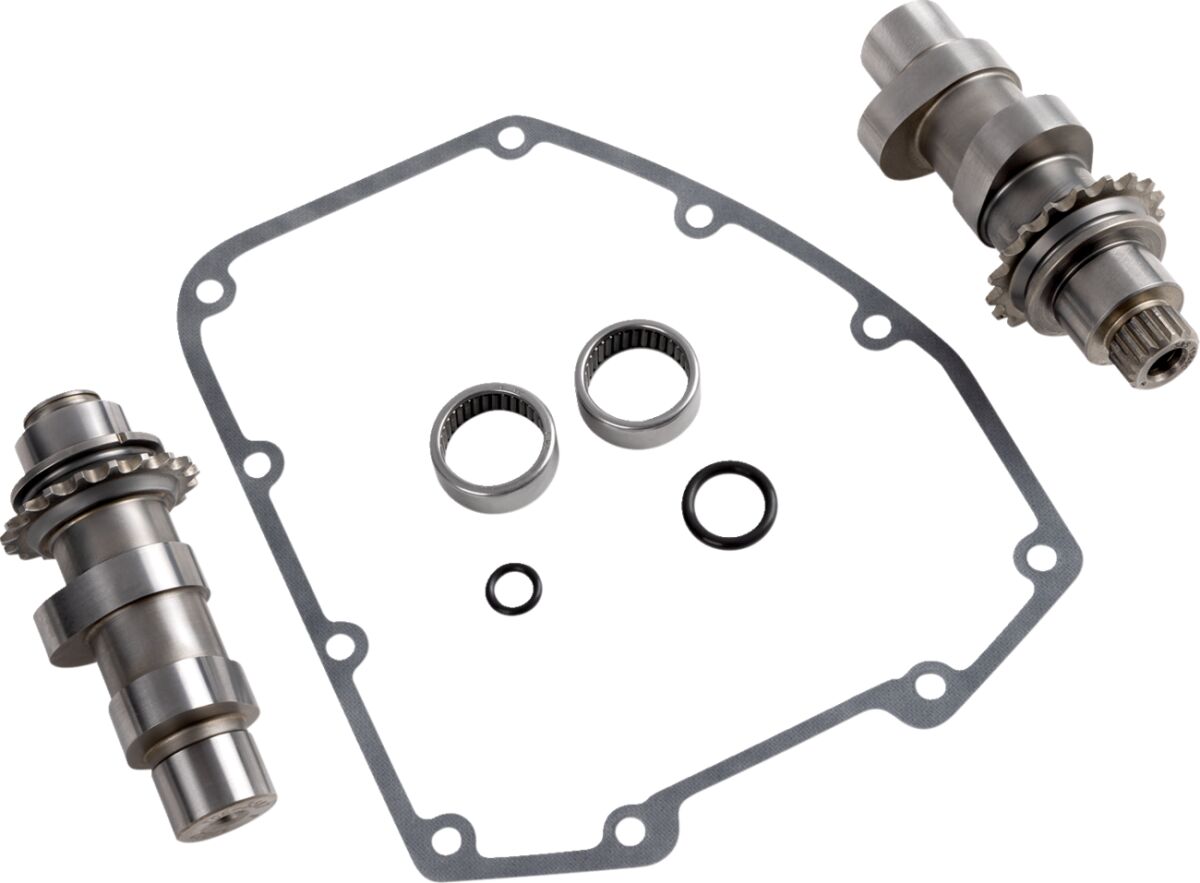

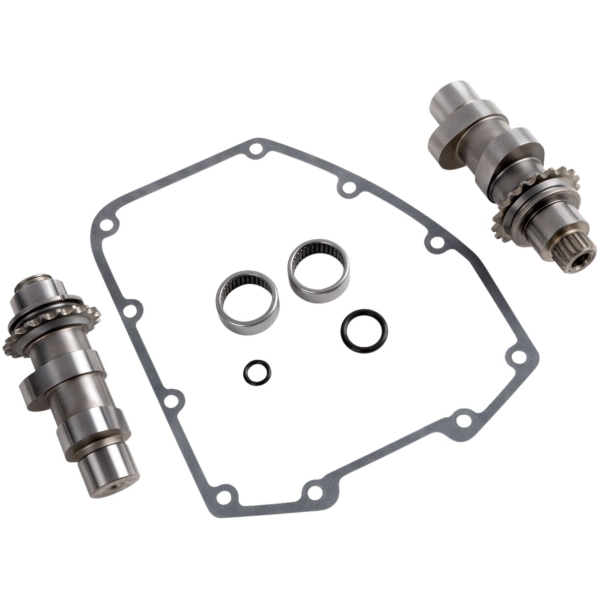

585C Chain Drive Camshaft Kit

  • Designed for 88″ to 107″ engines with compression ratios from 10.0:0 to 10.5:1 and 100″ and 107″ engines with compression ratios 9.7:1 to 10.5:1
  • Strongest from 3500-6000 rpm for 88″ to 103″ engines and 2500-5000 rpm for larger engines
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.



    • Cams for ’06 Dyna and ’07-’17 Twin Cam are for use with models with hydraulic tensioner chain drive system.
    Normal leveranstid från leverantör: 4-7 dagar

    Ytterligare information

    Vikt 1,869 kg
    Tillverkare

    Exhaust Open Imperial

    60°
    Exhaust Open

    60°
    Exhaust Lobe Centerline Imperial

    110°
    Exhaust Lobe Centerline

    110°
    Exhaust Lift Imperial

    0.585"
    Exhaust Lift at TDC Imperial

    0.179"
    Exhaust Lift at TDC

    0,179"
    Exhaust Lift

    0,585"
    Exhaust Duration Imperial

    260°
    Exhaust Duration

    260°
    Exhaust Close Imperial

    20°
    Application

    Exhaust, Intake
    Exhaust Close

    20°
    Grind

    585 Series
    Intake Lift Imperial

    0.585"
    Intake Open Imperial

    20°
    Intake Open

    20°
    Intake Lobe Centerline Imperial

    102.5°
    Intake Close

    45°
    Intake Lobe Centerline

    102,5°
    Intake Lift at TDC Imperial

    0.186"
    Intake Lift at TDC

    0,186"
    Intake Lift

    0,585"
    Intake Duration Imperial

    245°
    Intake Duration

    245°
    Intake Close Imperial

    45°
