Beskrivning

585G Gear Drive Camshaft Kit

Designed for 88/96/103/110 cubic-inch engines with compression ratios from 10.0:1 to 10.5:1

Reverses the rear cam’s direction of rotation, providing additional operating clearance between cam lobes making higher cam lifts possible

Increases valve timing accuracy by eliminating chain lash and loosely fit stock chain drive

Material must be removed from inner surface of the stock gear cover to install

3500-6000 rpm for 88″ to 103″ engines and 2500-5500 rpm for larger engines

A hydraulic press and other professional level tool are required for installation

S&S recommends that adjustable pushrod/cover get be used

Cam bearings and gaskets must be replaced when installing new cams

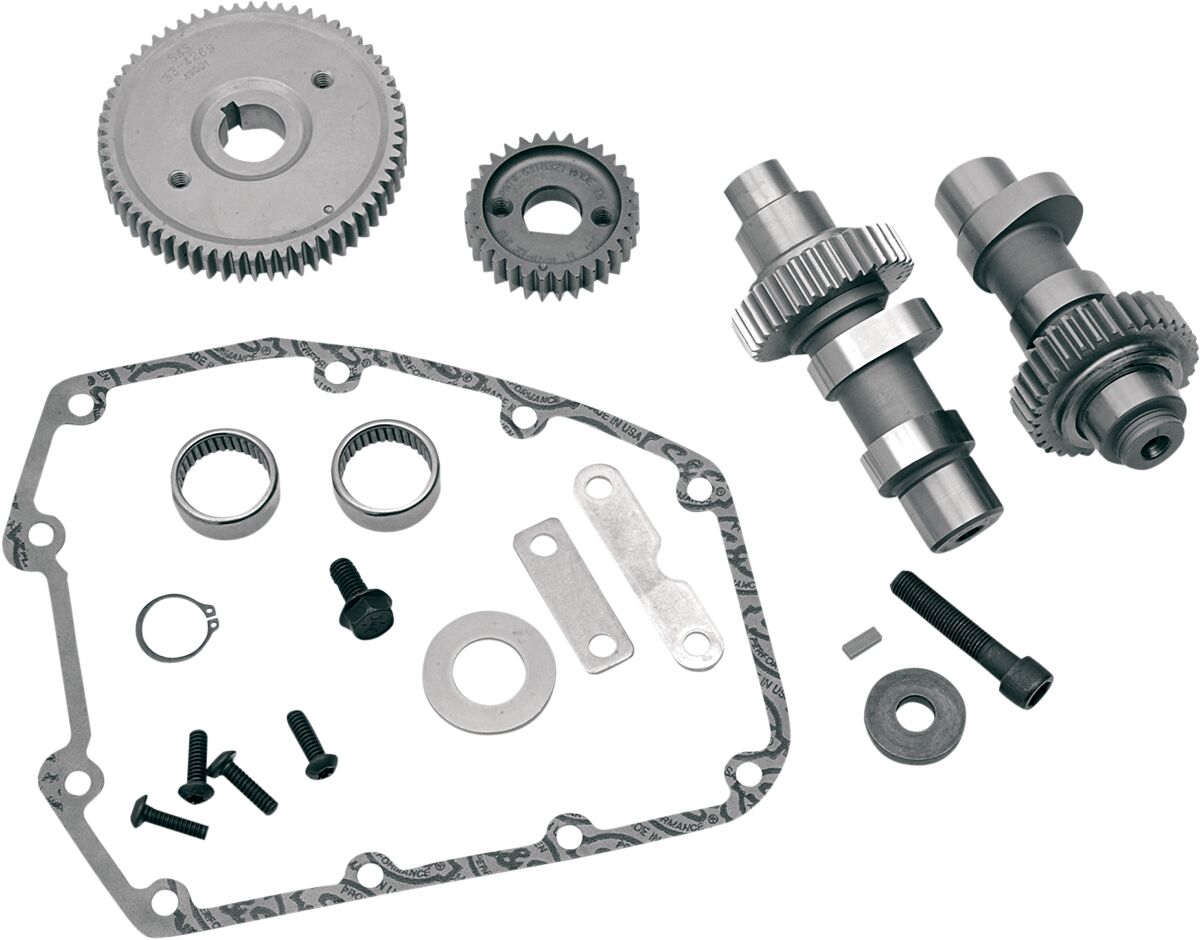

Kit includes camshafts, inner gears, outer gears, inner bearings, outer bearings, gasket and instructions

Installer must check coil bind, valve to valve clearance and valve to piston clearance.

Due to the inherent characteristics of gear drives, more valve train noise may occur.

Made in the USA

Normal leveranstid från leverantör: 4-7 dagar

Ytterligare information

Vikt	2,826 kg
Tillverkare	S+S CYCLE
Exhaust Open Imperial	60°
Exhaust Open	60°
Exhaust Lobe Centerline Imperial	110°
Exhaust Lobe Centerline	110°
Exhaust Lift Imperial	0.585"
Exhaust Lift at TDC Imperial	0.179"
Exhaust Lift at TDC	0,179"
Exhaust Lift	0,585"
Exhaust Duration Imperial	260°
Exhaust Duration	260°
Exhaust Close Imperial	20°
Application	Exhaust, Intake
Exhaust Close	20°
Grind	585 Series
Intake Lift Imperial	0.585"
Intake Open Imperial	20°
Intake Open	20°
Intake Lobe Centerline Imperial	102.5°
Intake Close	45°
Intake Lobe Centerline	102,5°
Intake Lift at TDC Imperial	0.186"
Intake Lift at TDC	0,186"
Intake Lift	0,585"
Intake Duration Imperial	245°
Intake Duration	245°
Intake Close Imperial	45°
