CAMSHAFT SET 625C CHAIN-DRIVEN

6,268 kr inkl. moms

CAM 625CHN 99-06

Kan restnoteras

Artikelnr: 09250530 Kategori: Etikett:

Beskrivning

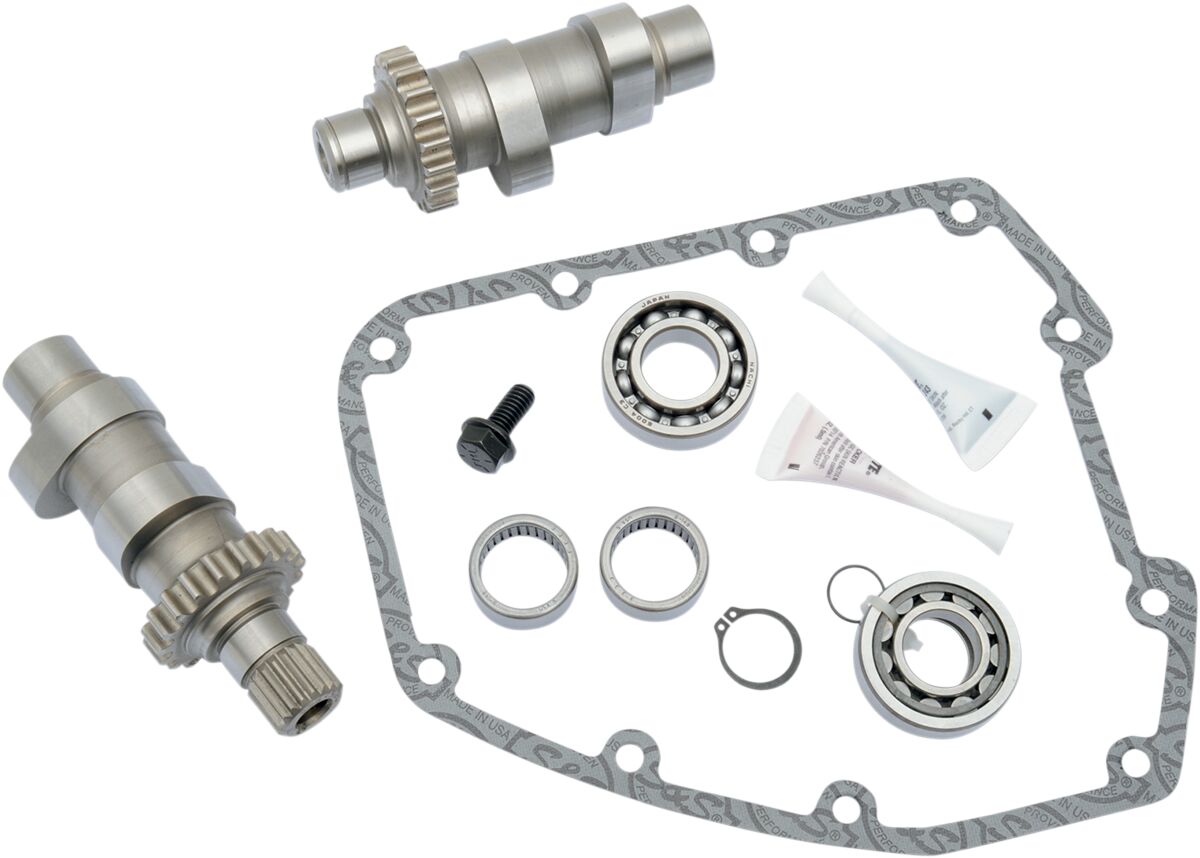

625C Chain Drive Camshaft Kit

  • For 95″ or larger engines with compression ratios between 10.0 to 10.75:1
  • High-lift springs and adjustable pushrods required
  • Strongest from 3000-6000 rpm
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.



    • Kit requires high performance valve springs when installed in ’99-’04 models.
    Cams for ’00-’06 Twin Cam are for use with stock splined drive gears; for installation on ’99 Twin Cam motors you must purchase splined outer drive sprocket; S&S recommends Andrews 4340 steel driver sprocket.
    Normal leveranstid från leverantör: 4-7 dagar

    Ytterligare information

    Vikt 1,823 kg
    Tillverkare

    Exhaust Open Imperial

    60°
    Exhaust Close

    20°
    Exhaust Close Imperial

    20°
    Exhaust Duration

    260°
    Exhaust Duration Imperial

    260°
    Exhaust Lift

    0,625"
    Exhaust Lift at TDC

    0,184"
    Exhaust Lift at TDC Imperial

    0.184"
    Exhaust Lift Imperial

    0.625"
    Exhaust Lobe Centerline

    110°
    Exhaust Lobe Centerline Imperial

    110°
    Features

    Cam Kit
    Exhaust Open

    60°
    Grind

    625 Series
    Intake Lift Imperial

    0.625"
    Intake Open Imperial

    20°
    Intake Open

    20°
    Intake Lobe Centerline Imperial

    107.5°
    Application

    Exhaust, Intake
    Intake Lobe Centerline

    107,5°
    Intake Lift

    0,625"
    Intake Duration Imperial

    255°
    Intake Duration

    255°
    Intake Close Imperial

    55°
    Intake Close

    55°
